Description

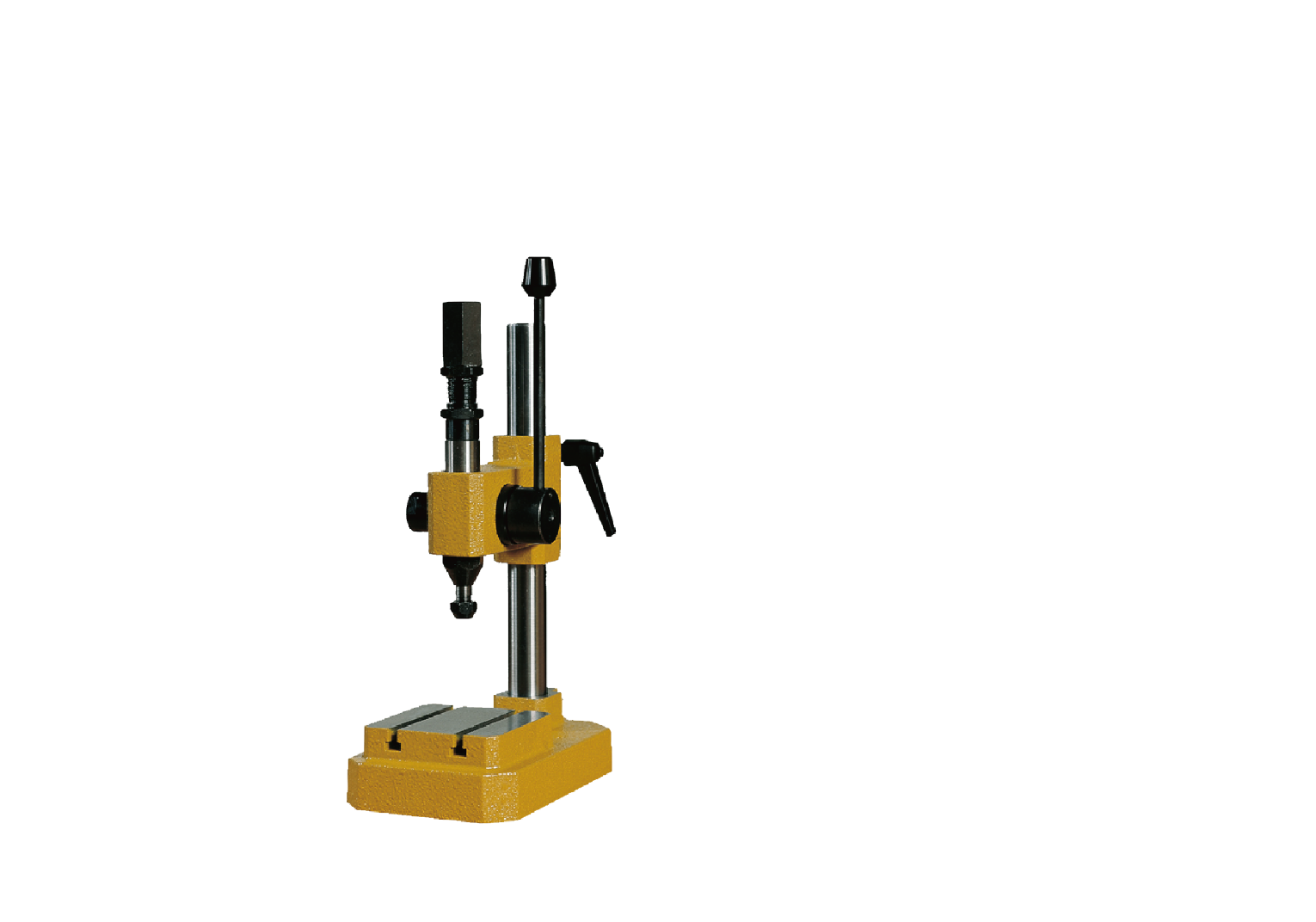

Multipurpose Marking And Stamping Press Machine
The table- top press is ideally suited to serial work on small and medium sized parts. Numerals and letters, special characters and
logos alike can be stamped with the press.
Emboss easily with a single stroke!
Manually operated press with spring mechanism. The lever tensions the spring, which is integrated into the impact spindle, until the
firing pin releases and strikes the workpiece.

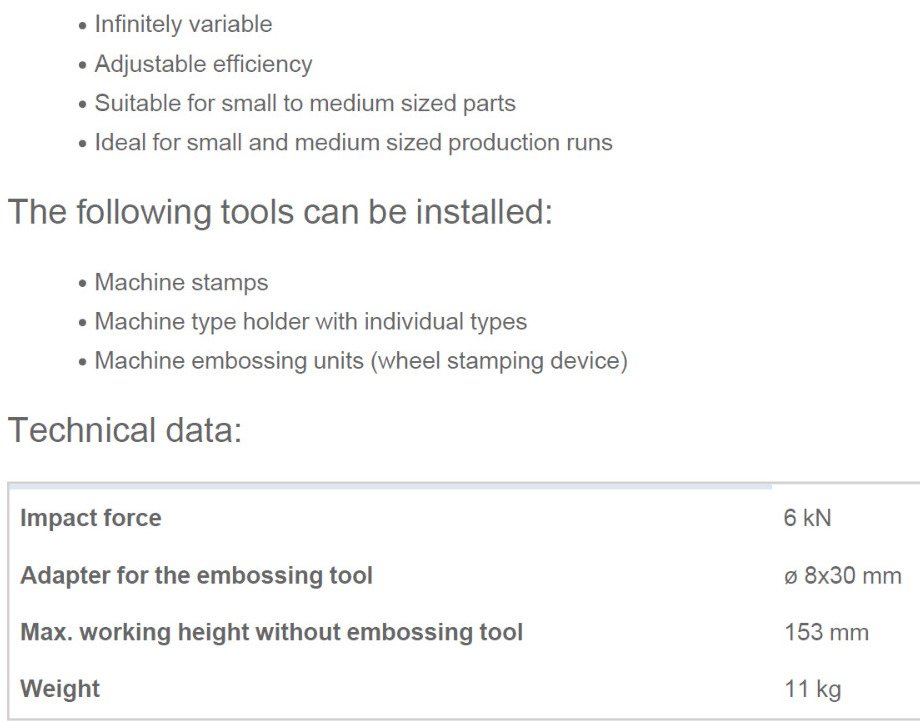

Infinitely variable
Adjustable efficiency
Suitable for small to medium sized parts
Ideal for small and medium sized production runs
The following tools can be installed:
Machine stamps
Machine type holder with individual types
Machine embossing units (wheel stamping device)
Technical data:
IMPACT FORCE 6 KNM
Adapter for the embossing tool 8X 30 MM
Max. working height without embossing tool 153 MM
WEIGHT 10 KILOGRAMS
Additional information
Weight | 10 kg |
---|
